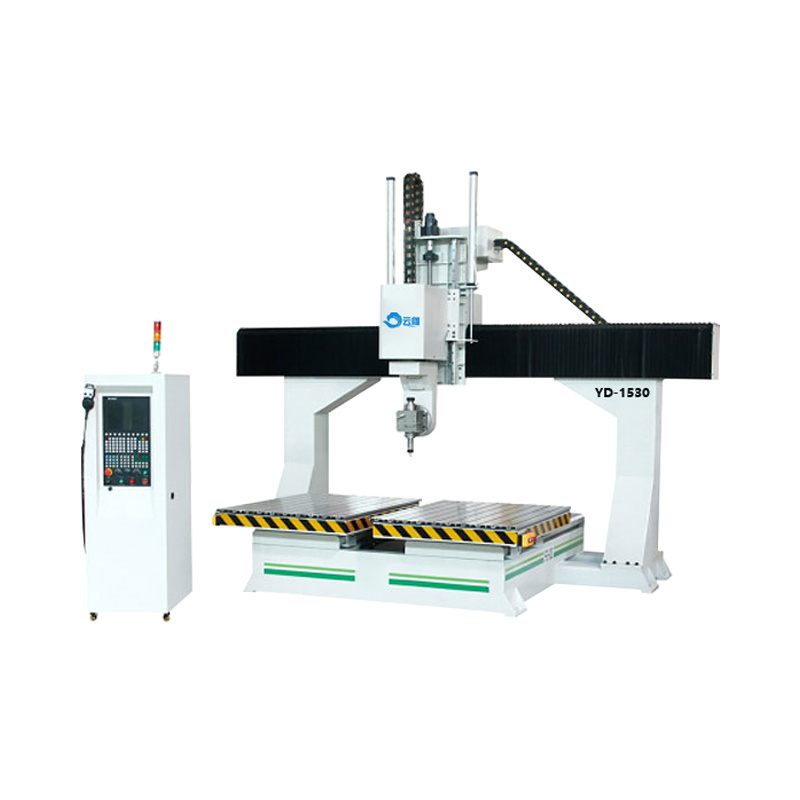

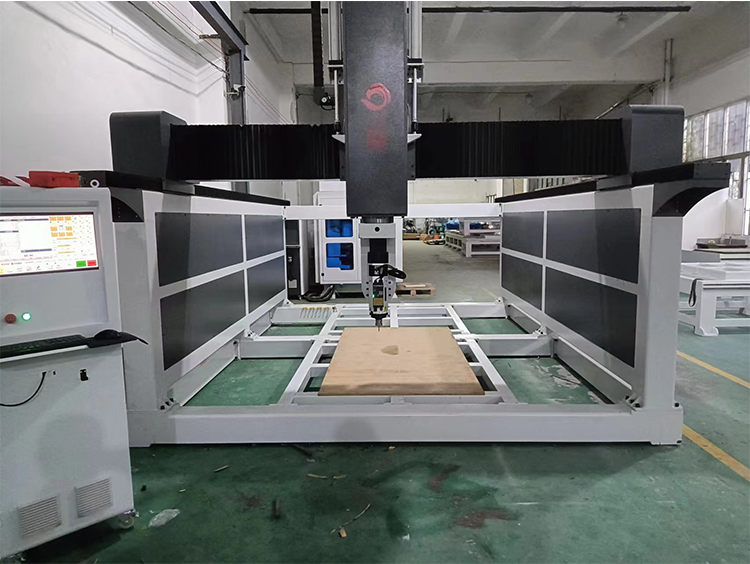

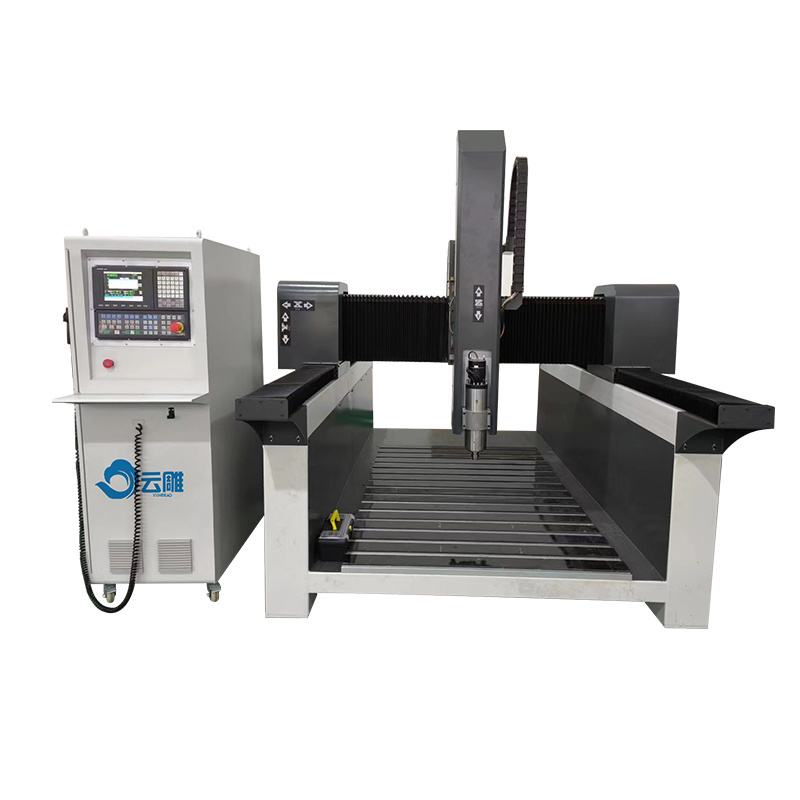

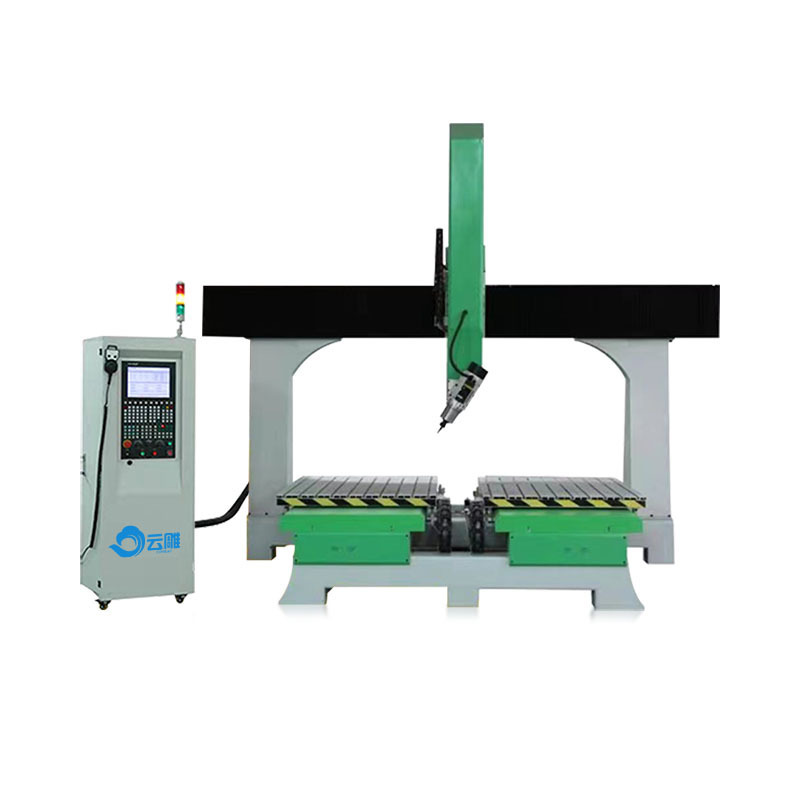

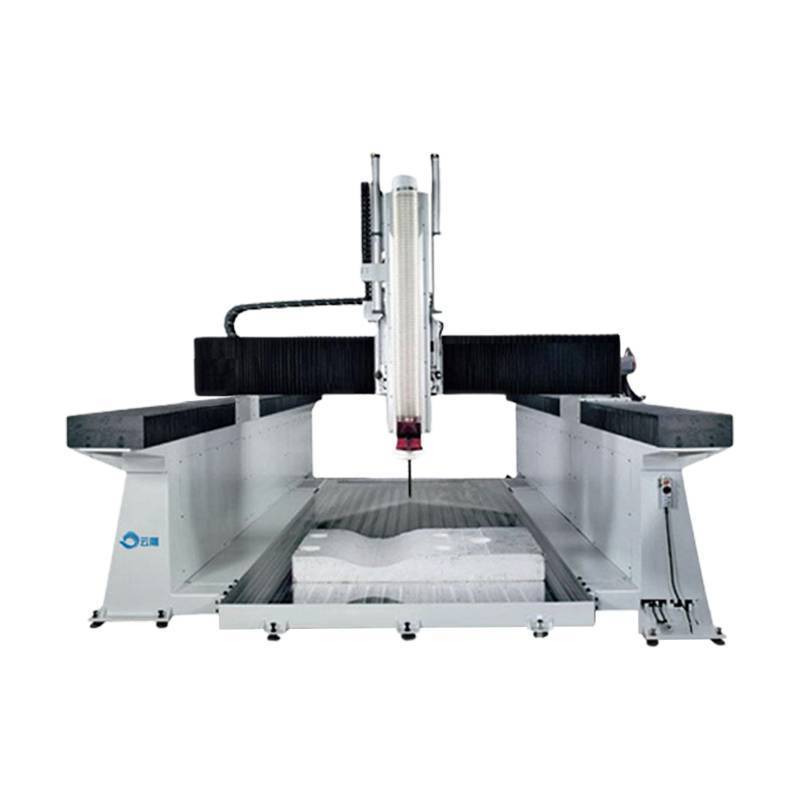

Large 5-axis non-metallic machining center

The five-axis foam engraving machine adopts advanced CNC technology, which can achieve high-precision engraving and ensure that the details of the carved model or product are accurate and clear. The engraving process is more flexible and can meet the engraving needs of various complex shapes and structures. It can greatly improve production efficiency, reduce the time and energy of manual operation, and thus reduce labor costs. It is suitable for engraving various foam materials, and has a wide range of applications in architectural models, display models, advertising decorations and other fields. The engraving machine adopts a numerical control system, and by inputting the corresponding engraving program, automatic processing can be realized, and it is easy to get started.

Product characteristics：

Cloud carving large five-axis engraving machine is widely used in non-metallic molds, foam models, architectural models, as well as foam long surface carving, cutting and other industries, the equipment adopts Japan Yaskawa servo motor, Taiwan new generation CNC system, BT40 automatic tool change spindle.

Category:

Five axis engraving machine

Product attachments:

五轴雕刻机英文配置说明.docx

云雕五轴雕刻机技术参数.docx

Keyword:

Large 5-axis non-metallic machining center

Product Description

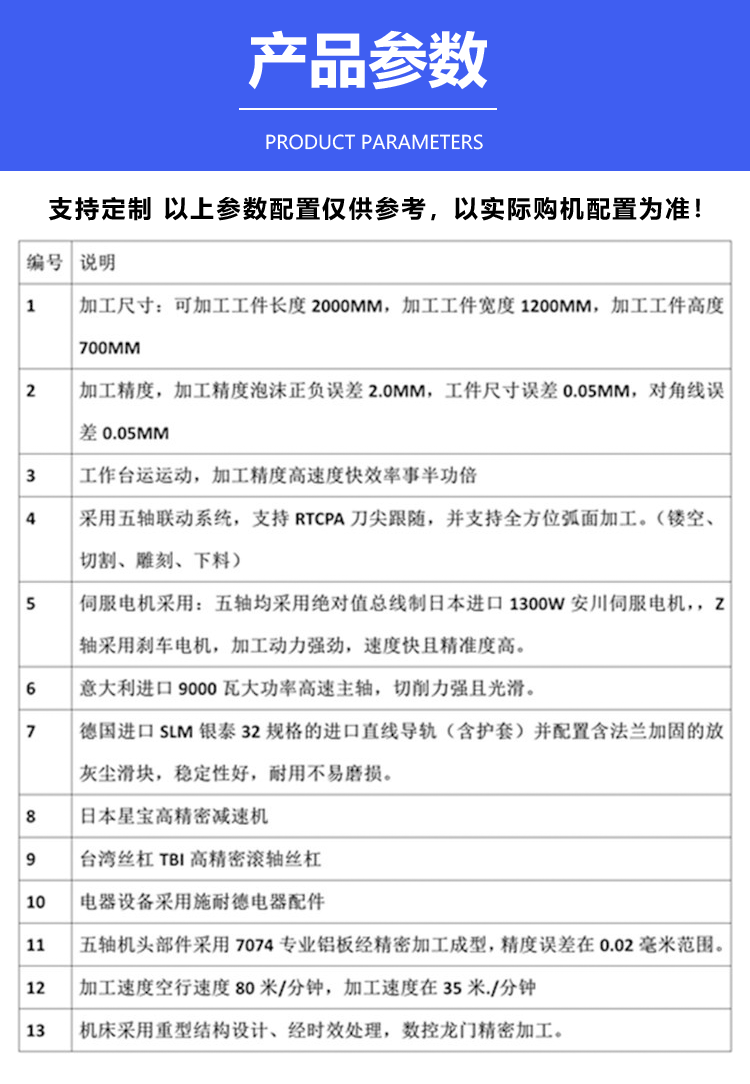

Model	YD-1325	YD-1530	YD-2030
Working area	1300*2500mm	1500*3000mm	2000*3000mm
Z feeding	400mm (option max height 600mm)
Frame structure	Steel casting-welding
Type of table cover	Vacuum table with T-slot
Vacuum pump	7.5kw air cooling
Z axis transmission	Ball screw and 25 square guide rails
X Y axis transmission	25# square guide rails + Helical rack
Max. Rapid Travel Rate	45000mm/min
Max. Working Speed	30000mm/min
Command Code	G code * .u00 * .mmg * .plt
Operating voltage	AC 380V/50Hz
Spindle power	HQD atc 9.0 KW
Spindle rotate	Left and right 180 degree
Tool Magazine	specification
Type of cooling	Air cooling
Spindle Speeds	0-24000rpm/min
Drive motor type	Syntec 1000w servo motor and driver
operating system	Taiwan SYNTEC 60WE bus control
Dust Collector	3kw with double bags
Lubrication system	Automatic
Supported software	Artcam software, Type3 software
Operating conditions	Humidity: 30% -75%, temperature: 15 - 45 degree
Warranty	Two years

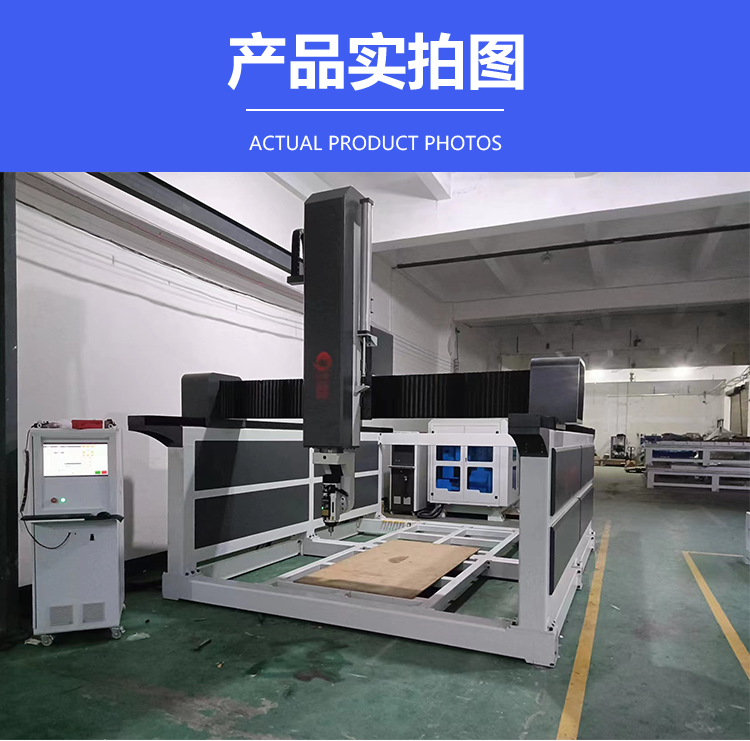

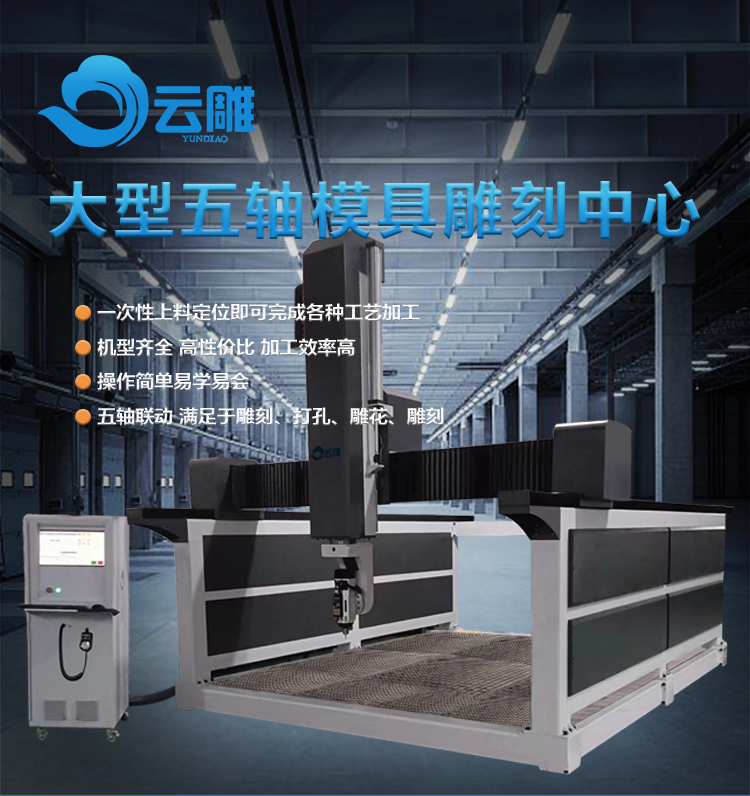

Cloud carving five-axis large foam engraving machine is a kind of high-precision CNC machining equipment, which is widely used in three-dimensional engraving and cutting of various foam materials and non-metallic materials.

1.Five-axis linkage：
The five-axis large-scale foam engraving machine adopts five-axis linkage technology, supports RTCP five-axis rapid differential compensation, and can realize the tip of the knife to follow and ensure the processing quality and processing accuracy.
One-time clamping, comprehensive processing, reduce clamping cost and positioning time, and improve work efficiency.
2.High precision：

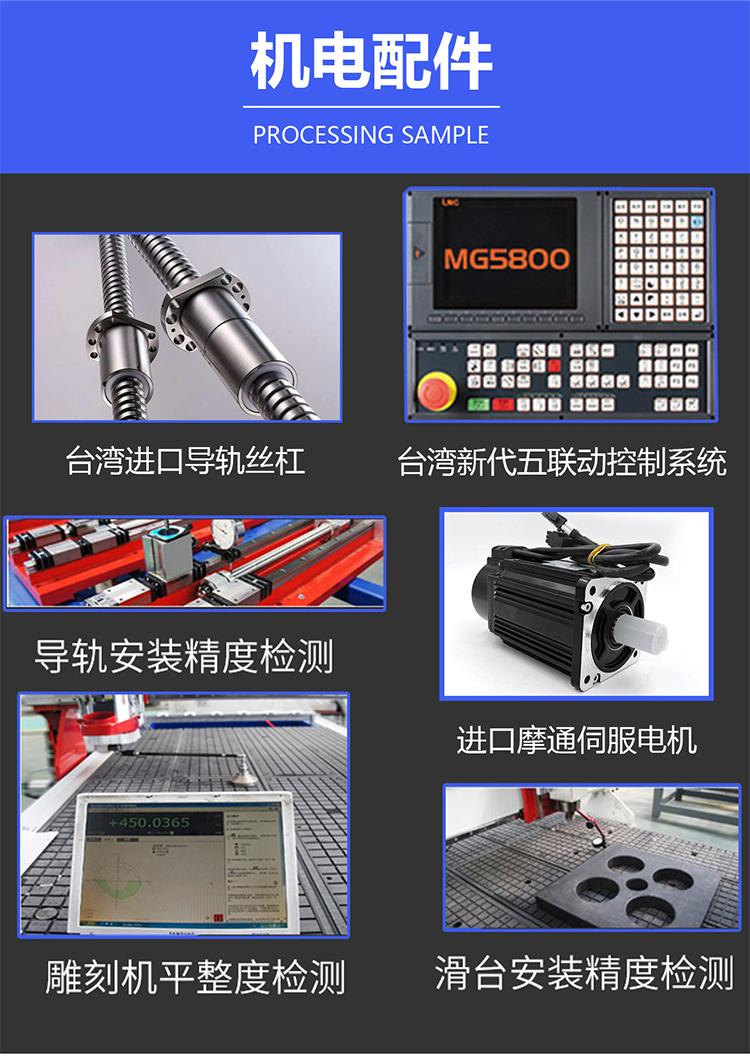

High-precision, high-performance transmission parts, such as guide rail screws imported from Germany, automatic tool change electric spindles from Italy, etc., are used to ensure smooth engraving without burrs.
Equipped with internationally renowned brand servo motors and reducers, such as Japan Yaskawa servo motor and Japan Xingbao RV reducer, to ensure the stability and accuracy of processing.
3.High performance：
The high-speed spindle and differential compensation system make it possible to significantly increase the engraving speed while maintaining high accuracy.
High degree of automation, support automatic tool change, automatic measurement and other functions, further improve production efficiency.
4.Durable and stable：
The main components, such as Taiwan Shangyinman maintenance screw and guide rail, are made of high-quality materials to ensure the long-term stable operation of the equipment.

Fields of application

1.Large transportation sector：
It is suitable for the engraving of aviation models, high-speed rail train models, cars, ships, and warship models.
2.Blister industry：
It is used for engraving and cutting sanitary ware, steam capsule, composite casing cover and other products.
3.Foundry industry：
Production and processing of foam molds, sand turning molds, disappearing molds and other products.
4.Other areas：
It can also be used in many fields such as model making, decoration, and furniture processing.With its high precision, high efficiency, durability and stability, the cloud carving five-axis large-scale foam engraving machine has been widely used in many fields. With the continuous development of intelligent manufacturing technology, the performance and accuracy of the equipment will continue to improve, bringing more convenience and benefits to the production and processing of various industries.
