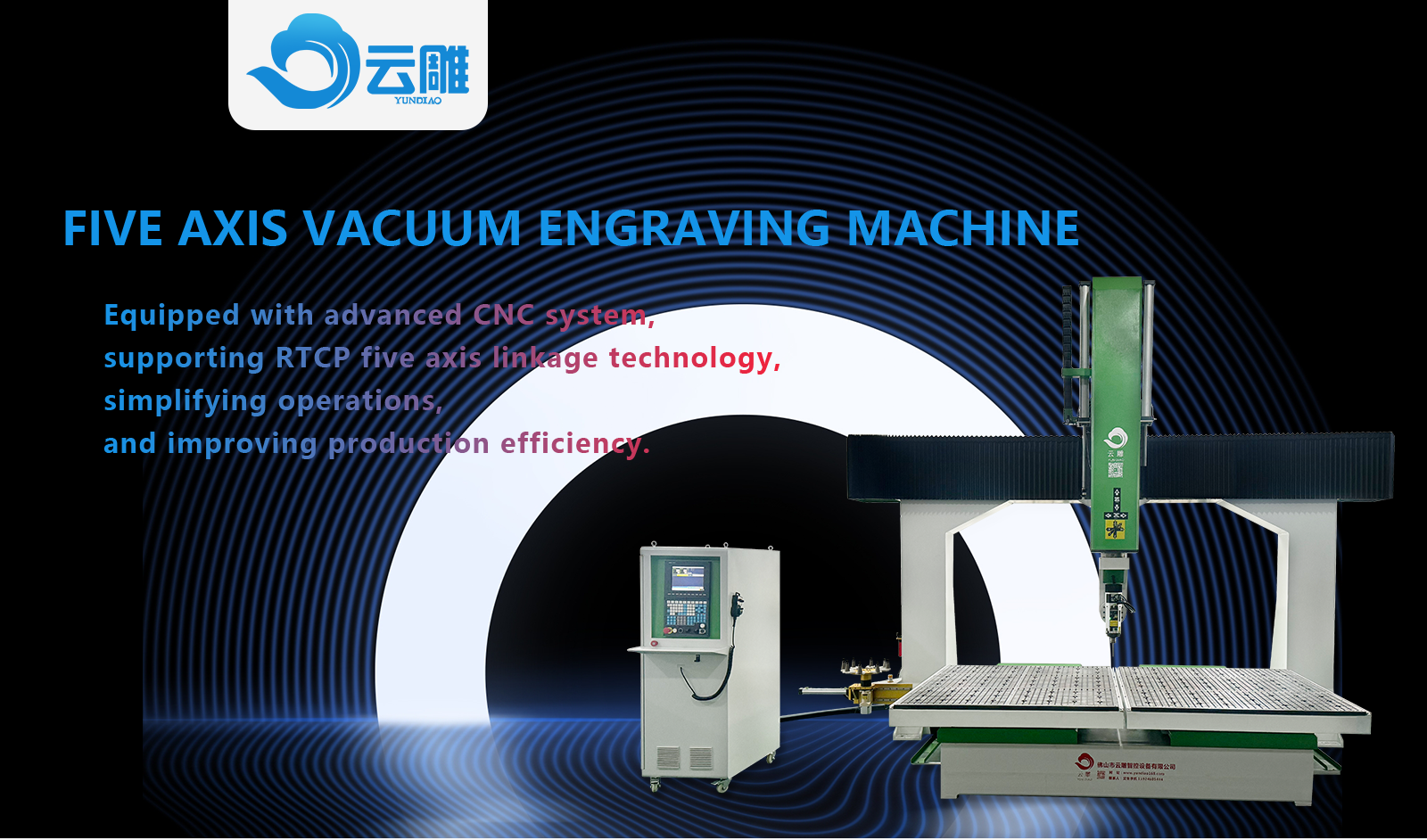

Five-axis double-station blister cutting machine

With its advanced technology, efficient performance, wide range of applications and high-quality technical support and service, the cloud carving five-axis double-station engraving machine has shown significant advantages in many industries. Whether in terms of production efficiency, processing accuracy or scope of application, Yundiao five-axis double-station engraving machine can meet the needs of high standards of processing, and provides strong support for enterprises to enhance their competitiveness and create long-term profits.

Product characteristics：

The equipment supports a multi-purpose machine, not only with curved relief, three-axis cutting, cutting V-groove, curved surface drilling, milling and hollowing, but also the efficiency replaces the traditional CNC, and the efficiency is doubled.

Category:

Five axis engraving machine

Product attachments:

五轴多头加工中心.mp4

Keyword:

Five-axis double-station blister cutting machine

Product Description

编号	性能指数		双工位非金属五轴加工中心
1	行程范围	X 轴行程	根据客户要求定制
		Y 轴行程	根据客户要求定制
		Z 轴行程	根据客户要求定制
		C 轴行程	±540°
		A 轴行程	±110°
		最大进料高度	1000mm
2	平台有效尺寸		根据客户要求定制
3	设备外形尺寸		根据客户要求定制
4	主轴	铣削主轴功率	10KW 电主轴
		铣削主轴转速	0-20000rpm
		主轴刀柄接口	HSK-F63
5	速度	最大空程速度	25000mm/min
5	速度	最大加工速度	18000mm/min
6	精度	运动定位精度	±0.10mm/ 1000mm
6	精度	重复定位精度	±0.05mm/ 1000mm

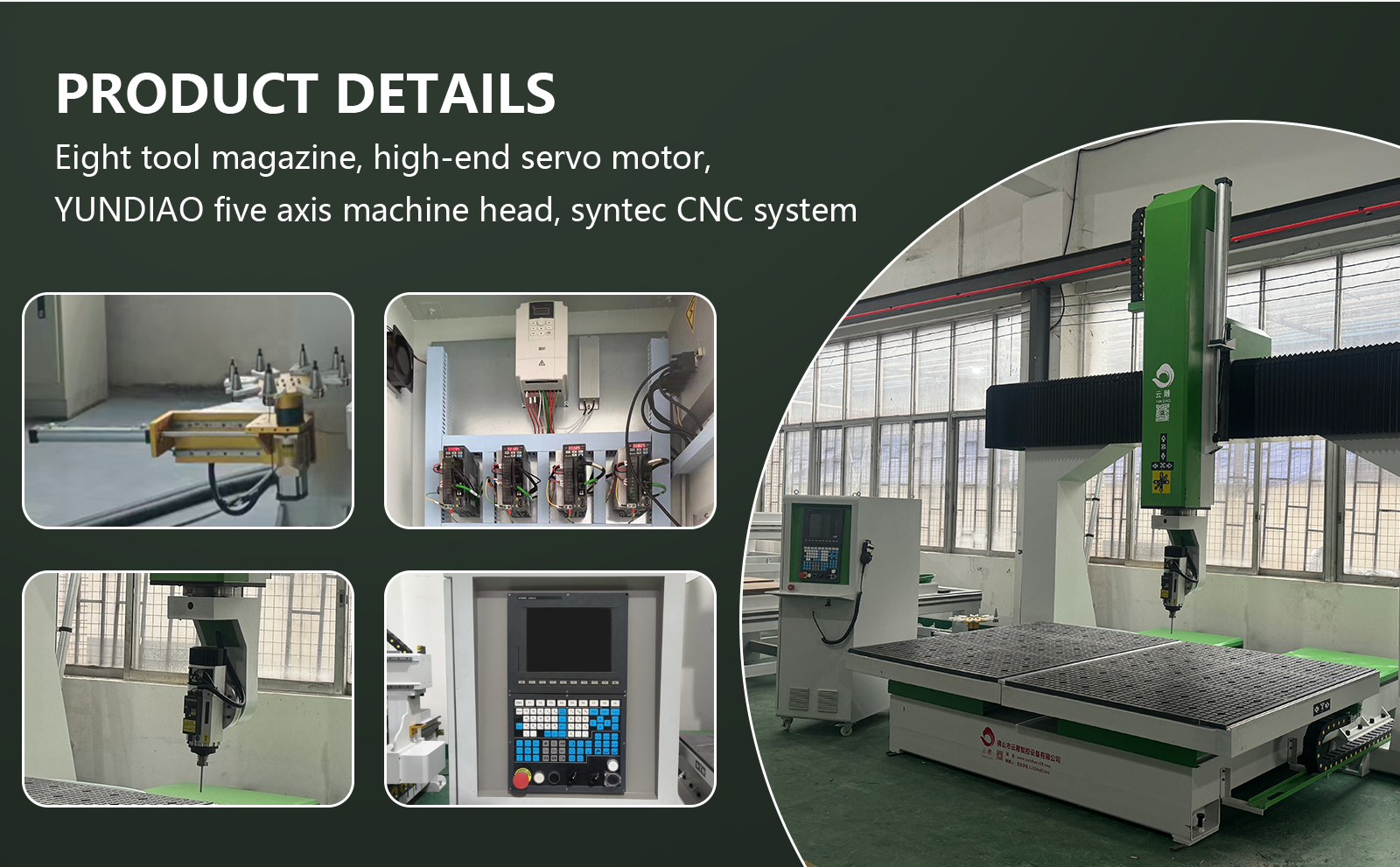

7	驱动模式		日本安川绝对值总线交流伺服驱动系统
8	工作电压		380V/50Hz
9	控制系统		台湾新代数控系统（支持 RTCP）
